Public API for loading JSON-formatted Tiled maps and tilesets. More...

Typedefs
typedef enum TMJ_LOG_PRIORITY	tmj_log_priority

Enumerations
enum	TMJ_LOG_PRIORITY { TMJ_LOG_DEBUG , TMJ_LOG_INFO , TMJ_LOG_WARNING , TMJ_LOG_ERR , TMJ_LOG_CRIT }

Functions
Map *	tmj_map_loadf (const char *path, bool check_extension)
	Loads the Tiled map from the file at the given path. More...

Map *	tmj_map_load (const char map, const char name)
	Loads the Tiled map from the given JSON object string. More...

Tileset *	tmj_tileset_loadf (const char *path, bool check_extension)
	Loads the Tiled tileset at the given path. More...

Tileset *	tmj_tileset_load (const char *tileset)
	Loads the Tiled tileset from the given JSON object string. More...

void	tmj_map_free (Map *map)
	Frees the memory associated with the given map. More...

void	tmj_tileset_free (Tileset *tileset)
	Frees the memory associated with the given tileset. More...

void	tmj_log_regcb (bool debug, void(callback)(tmj_log_priority, const char ))
	Registers a callback function to handle logging events. More...

uint32_t *	tmj_decode_layer (const char data, const char encoding, const char compression, size_t size)
	Decodes layer data from a Tiled map layer. More...

Variables
const unsigned int	TMJ_VERSION_MAJOR
	‍** More...

const unsigned int	TMJ_VERSION_MINOR
	The library minor version. More...

const unsigned int	TMJ_VERSION_PATCH
	The library patch version. More...

const char *const	TMJ_VERSION
	The full library version. More...

Detailed Description

Public API for loading JSON-formatted Tiled maps and tilesets.

Typedef Documentation

◆ tmj_log_priority

typedef enum TMJ_LOG_PRIORITY tmj_log_priority

Enumeration Type Documentation

◆ TMJ_LOG_PRIORITY

enum TMJ_LOG_PRIORITY

Enumerator
TMJ_LOG_DEBUG
TMJ_LOG_INFO
TMJ_LOG_WARNING
TMJ_LOG_ERR
TMJ_LOG_CRIT

Definition at line 496 of file tmj.h.

Function Documentation

◆ tmj_map_loadf()

Map* tmj_map_loadf	(	const char *	path,
		bool	check_extension
	)

Loads the Tiled map from the file at the given path.

The map object returned by this function must not be modified by the caller.

Parameters

path	A relative or absolute filesystem path.
check_extension	If true, validates that the file extension equals ".tmj" or ".json".

Returns: On success, returns a pointer to a map. The map is dynamically-allocated, and must be freed by the caller using map_free(). On failure, returns NULL.

Definition at line 1088 of file map.c.

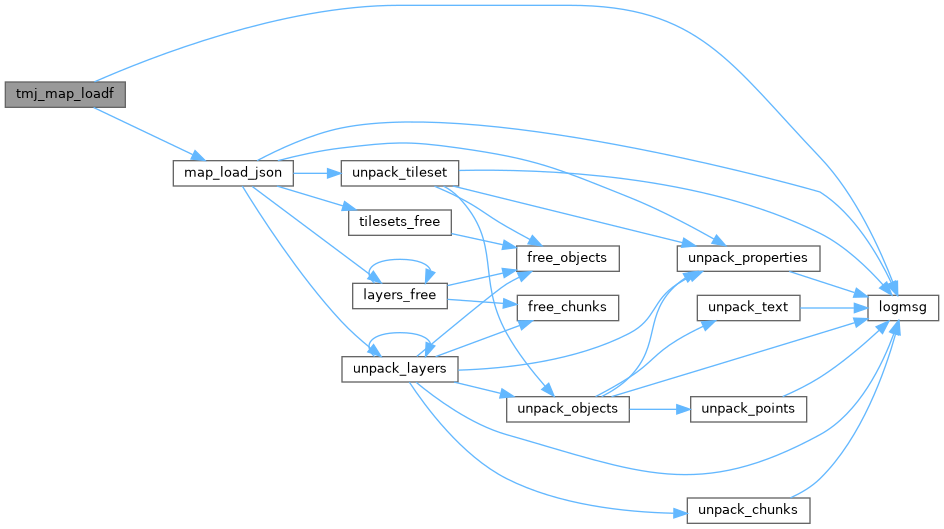

Here is the call graph for this function:

◆ tmj_map_load()

Map* tmj_map_load	(	const char *	map,
		const char *	name
	)

Loads the Tiled map from the given JSON object string.

The map object returned by this function must not be modified by the caller.

Parameters

map	A JSON string containing a Tiled map object.
name	A name to use to reference this map in log messages. tmj_map_loadf() does not require this argument, because it uses the file path to identify the map in log messages.

Returns: On success, returns a pointer to a map. The map is dynamically-allocated, and must be freed by the caller using map_free(). On failure, returns NULL.

Definition at line 1120 of file map.c.

Here is the call graph for this function:

◆ tmj_tileset_loadf()

Tileset* tmj_tileset_loadf	(	const char *	path,
		bool	check_extension
	)

Loads the Tiled tileset at the given path.

The tileset object returned by this function must not be modified by the caller.

Parameters

path	A relative or absolute filesystem path.
check_extension	If true, validates that the file extension equals ".tsj" or ".json".

Returns: On success, returns a pointer to a tileset. The tileset is dynamically-allocated, and must be freed by the caller using tileset_free(). On failure, returns NULL.

Definition at line 588 of file tileset.c.

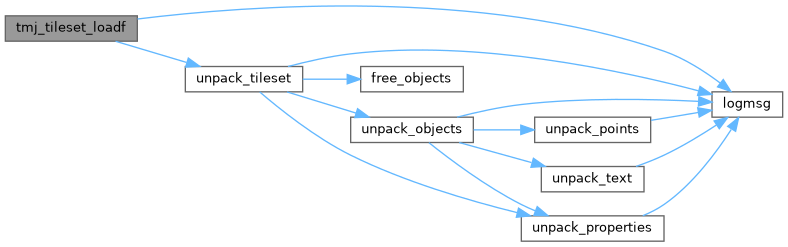

Here is the call graph for this function:

◆ tmj_tileset_load()

Tileset* tmj_tileset_load ( const char * tileset )

Loads the Tiled tileset from the given JSON object string.

The tileset object returned by this function must not be modified by the caller.

Parameters

tileset A JSON string containing a Tiled tileset object.

Returns: On success, returns a pointer to a tileset. The tileset is dynamically-allocated, and must be freed by the caller using tileset_free(). On failure, returns NULL.

Definition at line 638 of file tileset.c.

Here is the call graph for this function:

◆ tmj_map_free()

void tmj_map_free ( Map * map )

Frees the memory associated with the given map.

If the map was modified by the caller, this function may cause undefined behavior.

Parameters

map	A map which was returned by a call to map_load().

Definition at line 1134 of file map.c.

Here is the call graph for this function:

◆ tmj_tileset_free()

void tmj_tileset_free ( Tileset * tileset )

Frees the memory associated with the given tileset.

If the tileset was modified by the caller, this function may cause undefined behavior.

Parameters

tileset A tileset which was returned by a call to tileset_load().

Definition at line 671 of file tileset.c.

Here is the call graph for this function:

◆ tmj_log_regcb()

void tmj_log_regcb	(	bool	debug,
		void()(tmj_log_priority, const char )	callback
	)

Registers a callback function to handle logging events.

Parameters

debug	If set to true, the given callback function will receive debug messages and information in addition to the higher-priority messages.
callback	A function that takes a TMJ_LOG_PRIORITY and a char* and returns nothing.

Definition at line 18 of file log.c.

◆ tmj_decode_layer()

uint32_t* tmj_decode_layer	(	const char *	data,
		const char *	encoding,
		const char *	compression,
		size_t *	size
	)

Decodes layer data from a Tiled map layer.

Parameters

	data	The value of the "data_str" field from a Layer.
	encoding	The value of the "encoding" field from a Layer.
	compression	The value of the "compression" field from a Layer.
[out]	size	The size of the resultant integer array.

Returns: On Success, returns a dynamically-allocated array of global tile IDs. This array must be freed by the caller. See https://doc.mapeditor.org/en/stable/reference/global-tile-ids/ for more information. On failure, returns NULL.

Definition at line 15 of file util.c.

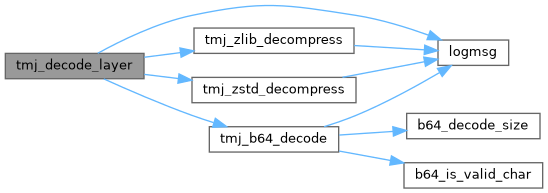

Here is the call graph for this function:

Variable Documentation

◆ TMJ_VERSION_MAJOR

const unsigned int TMJ_VERSION_MAJOR

extern

‍**

The library major version.

An unsigned integer representing the major component of the SemVer 2.0 version of this library.

Definition at line 10 of file util.c.

◆ TMJ_VERSION_MINOR

const unsigned int TMJ_VERSION_MINOR

extern

The library minor version.

An unsigned integer representing the minor component of the SemVer 2.0 version of this library.

Definition at line 11 of file util.c.

◆ TMJ_VERSION_PATCH

const unsigned int TMJ_VERSION_PATCH

extern

The library patch version.

An unsigned integer representing the patch component of the SemVer 2.0 version of this library.

Definition at line 12 of file util.c.

◆ TMJ_VERSION

const char* const TMJ_VERSION

extern

The full library version.

A string containing the full SemVer 2.0 version of this library.

Definition at line 13 of file util.c.
